Matrix Parameters in Real-Time Workshop

MATLAB, Simulink, and Real-Time Workshop all use column-major ordering for all array storage (1-D, 2-D, ...), so that the "next" element of an array in memory is always accessed by incrementing the first index of the array. For example, all of these element pairs are stored sequentially in memory: A(i) and A(i+1), B(i,j) and B(i+1,j), C(i,j,k) and C(i+1,j,k).For more information on the internal representation of MATLAB data, see The MATLAB Array in External Interfaces/API.

Simulink and Real-Time Workshop differ from MATLAB internal data storage format only in the storage of complex number arrays. In MATLAB, the real and imaginary parts are stored in separate arrays, while in Simulink and Real-Time Workshop they are stored in an "interleaved" format, where the numbers in memory alternate real, imaginary, real, imaginary, and so forth. This convention allows efficient implementations of small signals on Simulink lines and for Mux blocks and other "virtual" signal manipulation blocks (i.e., they don't actively copy their inputs, merely the references to them).

The compiled model file, model.rtw, represents matrices as strings in MATLAB syntax, with no implied storage format. This is so you can copy the string out of a .rtw file and paste it into a .m file and have it recognized by MATLAB.

The Target Language Compiler declares all Simulink block matrix parameters as scalar or 1-D array variables

• real_T scalar;
  real_T mat[ nRows * nCols ];


where real_T could actually be any of the data types supported by Simulink, and will match the variable type given in a the .mdl file.

For example, the 3-by-3 matrix in the Look-Up Table (2-D) block

• 1   2   3
  4   5   6
  7   8   9


is stored in model.rtw as

• Parameter {
      Name             "OutputValues"
      Value            Matrix(3,3)
  [[1.0, 2.0, 3.0]; [4.0, 5.0, 6.0]; [7.0, 8.0, 9.0];]
      String           "t"
      StringType       "Variable"
      ASTNode {
        IsNonTerminal        0
        Op                   SL_NOT_INLINED
        ModelParameterIdx    3
      }
  }


and results in this definition in model.h

• typedef struct Parameters_tag {
    real_T s1_Look_Up_Table_2_D_Table[9];
                           /* Variable:s1_Look_Up_Table_2_D_Table
                            * External Mode Tunable:yes
                            * Referenced by block:
                            * <S1>/Look-Up Table (2-D)
                            */

    [ ... other parameter definitions ... ]

  } Parameters;

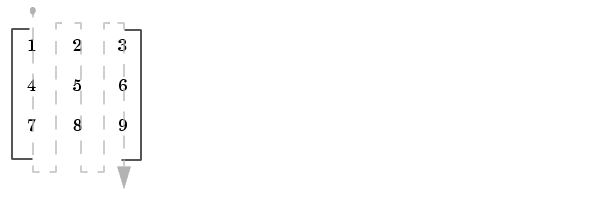

The model.h file declares the actual storage for the matrix parameter and you can see that the format is column-major. That is, read down the columns, then across the rows.

• Parameters rtP = {
    /* 3 x 3 matrix s1_Look_Up_Table_2_D_Table */
    { 1.0, 4.0, 7.0, 2.0, 5.0, 8.0, 3.0, 6.0, 9.0 },
    [ ... other parameter declarations ... ]
  };


The Target Language Compiler accesses matrix parameters via LibBlockMatrixParameter and LibBlockMatrixParameterAddr, where:

LibBlockMatrixParameter(OutputValues, "", "", 0, "", "", 1) returns "rtP.s1_Look_Up_Table_2_D_Table[nRows]" (automatically optimized from "[0+nRows*1]") and

LibBlockMatrixParameterAddr(OutputValues, "", "", 0, "", "", 1) returns "&rtP.s1_Look_Up_Table_2_D_Table[nRows]" for both inlined and noninlined block TLC code.

Matrix parameters are like any other TLC parameters in that only those parameters explicitly accessed by a TLC library function during code generation are placed in the parameters structure. So, following the example, s1_Look_Up_Table_2_D_Table is not declared unless it is explicitly accessed by LibBlockParameter or LibBlockParameterAddr.
