VxWorks Library

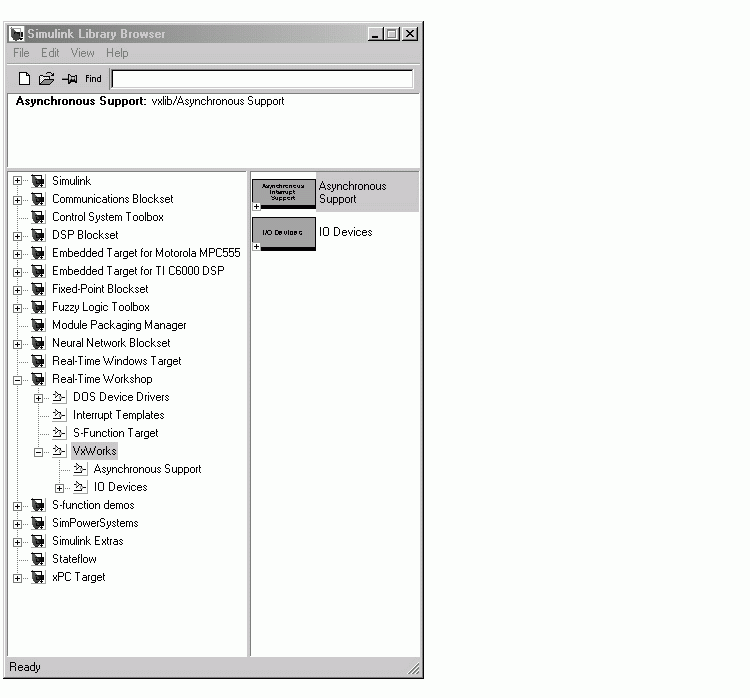

Selecting VxWorks Support under the Real-Time Workshop library in the Simulink Library Browser opens the VxWorks Support library.

The blocks discussed in this chapter are located in the Asynchronous Support library, a sublibrary of the VxWorks Support library:

• Interrupt Control
• Rate Transition
• Read Side
• Task Synchronization
• Write Side

A second sublibrary, the I/O Devices library, contains support for these drivers:

• Matrix MS-AD12
• Matrix MS-DA12
• VME Microsystems VMIVME-3115-110
• Xycom XVME-500/590
• Xycom XVME-505/595

Each of these blocks has online help available through the Help button on the block's dialog box. Refer to the Tornado User's Guide for detailed information on these blocks.
