External Mode Control Panel

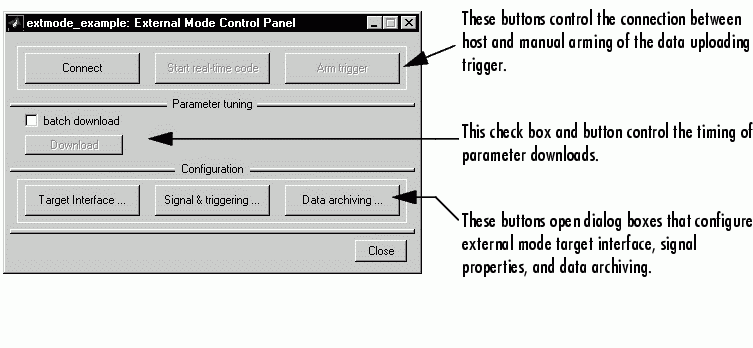

The External Mode Control Panel provides centralized control of all external mode features, including:

• Host/target connection, disconnection, and target program start/stop functions, and enabling of external mode
• Arming and disarming the data upload trigger
• External mode communications configuration
• Timing of parameter downloads
• Selection of signals from the target program to be viewed and monitored on the host
• Configuration of data archiving features

Select External mode control panel from the Simulink Tools menu to open the External Mode Control Panel.

The following sections describe the features supported by the External Mode Control Panel.
