Working with the Report Conversion UI

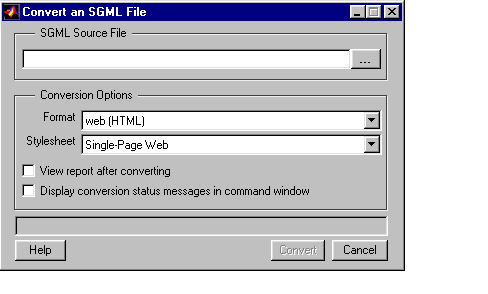

If you type rptconvert without any input arguments, the report conversion UI will appear.

SGML Source File

Enter the name of the SGML source file you want to convert in this text box or use the browse button (...) to find it.

Conversion Options

Specify output options in this section.

Format.   Choose the desired output format.

Stylesheet.   Choose the desired stylesheet.

See Report Format and Stylesheets earlier in this chapter for more information about format and stylesheet.

View report after converting.   Select this option if you want to view the report after the conversion is complete.

Display conversion status messages in command window.   Select this option if you want to display conversion status messages in the MATLAB command window after report conversion is complete.

Converting the Report

Click on the Convert button to convert the report.

How Unreadable Image Files Are Handled

If the original document contains an image that your viewer cannot read, (e.g., if you are using an HTML viewer that cannot read .eps files), then a placeholder for the image will appear in your report instead of the actual image.

Make sure that the report you are converting has images saved in a format that your viewer can read.
