| SimPowerSystems | |
Implement a common node in the circuit
Library
Description
The Neutral block implements a common node with a specific node number. If the node number is set to 0, the neutral block automatically makes a connection to ground. The node number is displayed on the icon. You can use this block to create a floating neutral or to interconnect two points without drawing a connection line.
For drawing ease, two types of Neutral blocks are available in the library: one block with an input and one block with an output.

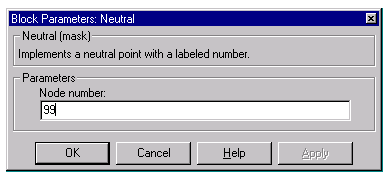

Dialog Box
Example

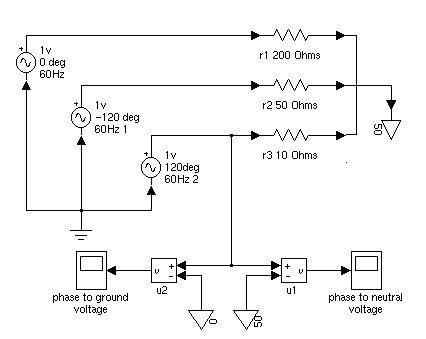

The psbneutral.mdl demo uses three Neutral blocks to connect three resistor blocks to a floating neutral (node 50).
See Also
Ground
