Creating Rounded Corners
As an example of how to use the set formula, let us model a plate with rounded corners (fillets).
Start the GUI and turn on the grid and the "snap-to-grid" feature using the Options menu. Also, change the grid spacing to -1.5:0.1:1.5 for the x-axis and -1:0.1:1 for the y-axis.
Select Rectangle/square from the Draw menu or click the button with the rectangle icon. Then draw a rectangle with a width of 2 and a height of 1 using the mouse, starting at (-1,0.5). To get the round corners, add circles, one in each corner. The circles should have a radius of 0.2 and centers at a distance that is 0.2 units from the left/right and lower/upper rectangle boundaries ((-0.8,-0.3), (-0.8,0.3), (0.8,-0.3), and (0.8,0.3)). To draw several circles, double-click the button for drawing ellipses/circles (centered). Then draw the circles using the right mouse button or Control-click starting at the circle centers. Finally, at each of the rectangle corners, draw four small squares with a side of 0.1.

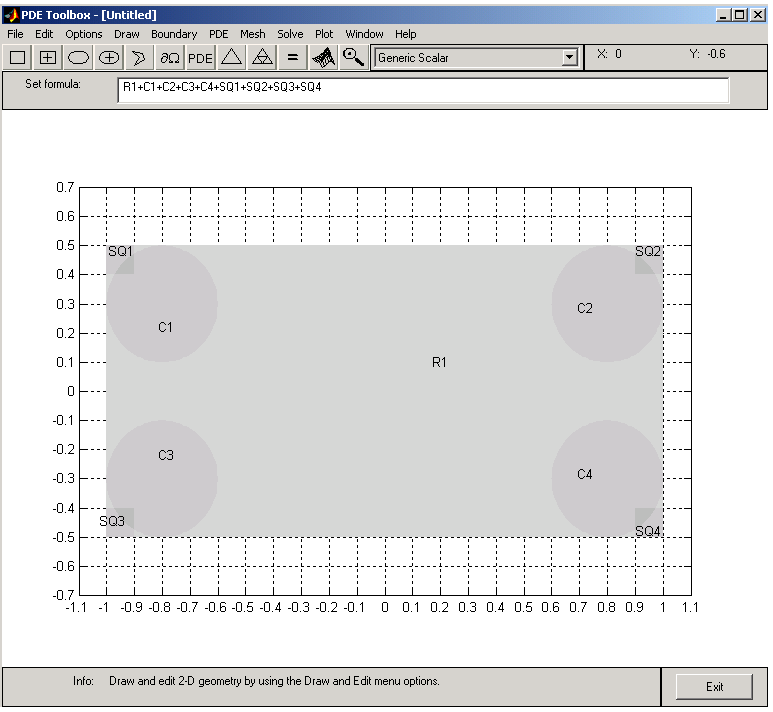

The figure below shows the complete drawing.
Now you have to edit the set formula. To get the rounded corners, subtract the small squares from the rectangle and then add the circles. As a set formula, this is expressed as
Enter the set formula into the edit box at the top of the GUI. Then enter the Boundary mode by clicking the

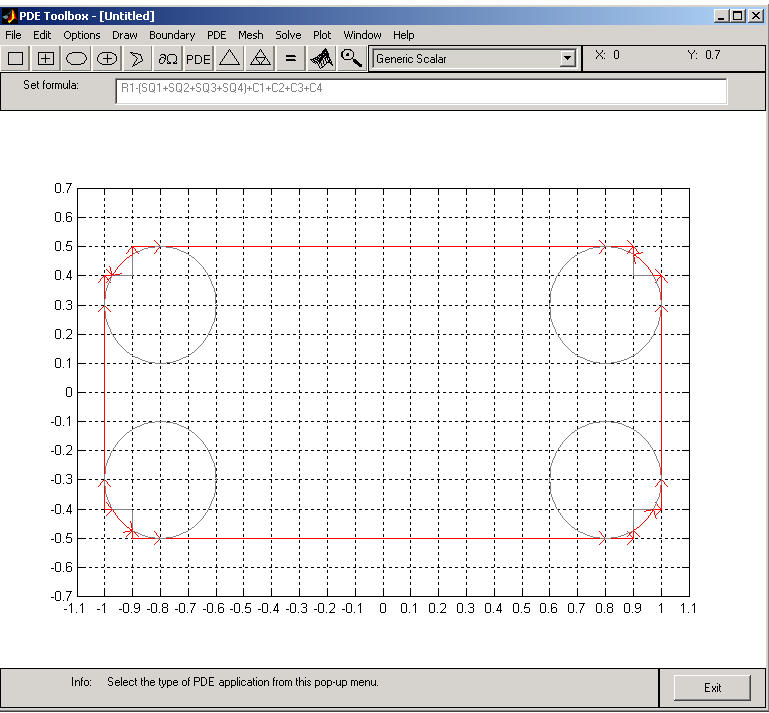

button or by selecting the Boundary Mode option from the Boundary menu. The CSG model is now decomposed using the set formula, and you get a rectangle with rounded corners, as shown below.
Because of the intersection of the solid objects used in the initial CSG model, a number of subdomain borders remain. They are drawn using gray lines. If this is a model of, e.g., a homogeneous plate, you can remove them. Select the Remove All Subdomain Borders option from the Boundary menu. The subdomain borders are removed and the model of the plate is now complete.
