Embedded Target for Motorola MPC555

Editing Target Preferences via the
Property Inspector Window

The Property Inspector window provides a graphical user interface for editing Target Preferences objects. The Property Inspector window does not have Apply or Save buttons, so you must still use the commands described in Setting Target Preferences to make changes to target preferences persistent.

To edit the target preferences via the Property Inspector window:

1. Retrieve the target preferences to an object:

• tpObj = gettargetprefs('mpc555dk')


2. Invoke the edit method of the object.

• edit(tpObj)

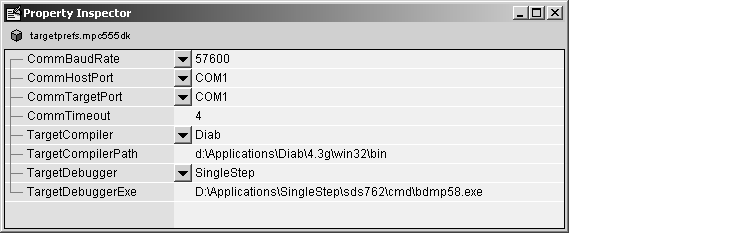

The edit method opens the Property Inspector window, as shown below.

3. Modify the fields you want to change.
4. Make your changes persistent by using the object to set your active preferences.

• settargetprefs('mpc555dk',tpObj)


MATLAB Commands for Working with Target Preferences

Setting Up Your Installation with Diab Cross-Compiler and SingleStep Debugger
