Function Viewer

The Function Viewer controls the execution of worksheet functions. Use the Function Viewer to organize the list of all currently loaded MATLAB Excel Builder functions.

Using the Function Viewer

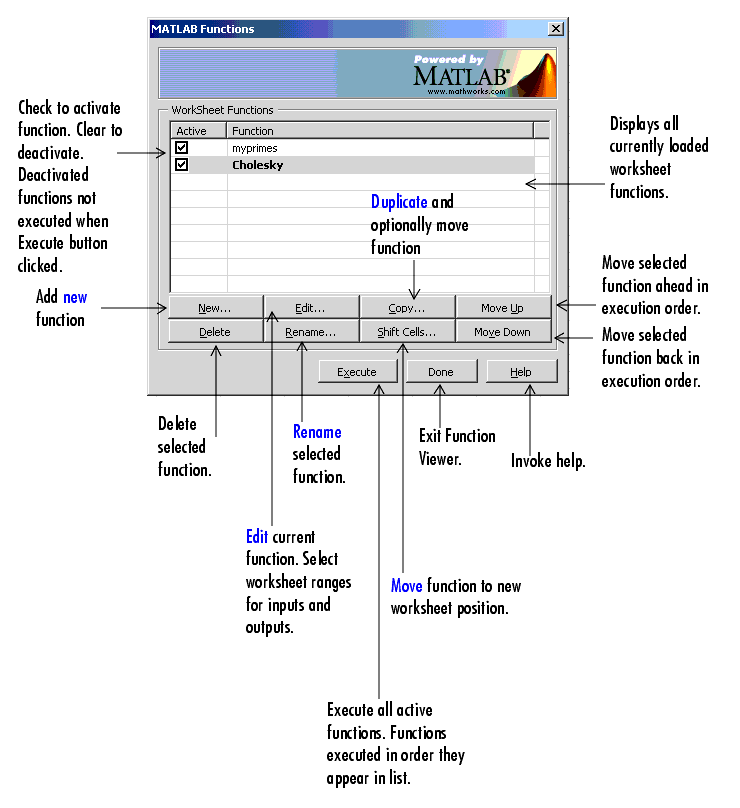

The Function Viewer displays the names of all loaded functions. You can edit this name to provide a more descriptive identifier. A check box for each entry denotes the active/inactive state of each function. Inactive functions are not executed when you click the Execute button.

Below the function list is a panel of eight buttons. To add a new component to the list of loaded worksheet functions, click the New button. (See Component Browser).

Each of the other buttons performs a specific action on the currently selected function. To select a function, left-click the list item. The row becomes highlighted. You can change the current selection by left-clicking on a different list item or by using the up and down arrow keys on your keyboard.

Loading and Executing Functions

To load and execute a MATLAB Excel Builder function in your worksheet requires three steps:

  1. Load an Excel Builder component.
  1. Click the New button on the Function Viewer to display the Component Browser. (See Component Browser.) Use this browser to select the component you want to load from the list of all currently installed Excel Builder components. From the selected component, add the method that you want to call.

  1. Set the inputs, outputs, and other properties of your function.
  1. Click the Edit button to display the Function Properties dialog box. (See Function Properties.)

  1. Click the Execute button on the Function Viewer.
  1. When you click the Execute button, functions execute in the order displayed in the list.
