Testing The Add-in

Before distributing the add-in, test it with a sample problem. Spectral analysis is commonly used to find the frequency components of a signal buried in a noisy time domain signal. In this example you will create a data representation of a signal containing two distinct components and add to it a random component. This data along with the output will be stored in columns of an Excel worksheet, and you will plot the time-domain signal along with the power spectral density.

Follow the steps outlined below to create the test problem.

  1. Start a new session of Excel with a blank workbook.
  2. Select Tools->Add-Ins from the main menu.
  3. When the Add-Ins dialog comes up, click Browse.
  4. Browse to the <project-directory>\distrib directory, select Fourier.xla and click OK.
  5. The Spectral Analysis add-in appears in the available Add-Ins list and is checked.
  6. Click OK to load the add-in.

This add-in installs a menu item under the Excel Tools menu. You can display the Spectral Analysis GUI by selecting Tools->Spectral Analysis. Before invoking the add-in, create some data, in this case a signal with components at 15 and 40 Hz. Sample the signal for 10 seconds at a sampling rate of 0.01 sec. Put the time points into column A and the signal points into column B.

Creating the Data

Follow these steps to create the data.

  1. Enter 0 for cell A1 in the current worksheet.
  2. Click on cell A2 and type the formula "= A1 + 0.01".
  3. Click and hold on the lower right hand corner of cell A2 and drag the formula down the column to cell A1001. This procedure fills the range A1:A1001 with the interval 0 to 10 incremented by 0.01.
  4. Click on cell B1 and type the formula "= SIN(2*PI()*15*A1) + SIN(2*PI()*40*A1) + RAND()". Repeat the drag procedure to copy this formula to all cells in the range B1:B1001.

Running the Test

Using the column of data (column B), test the add-in as follows:

  1. Select Tools->Spectral Analysis... from the main menu.
  2. Click on the Input Data box.
  3. Select the B1:B1001 range from the worksheet or type this address into Input Data.
  4. Click on the Sampling Interval box and type 0.01.
  5. Check Plot time domain signal and power spectral density.
  6. Enter C1:C1001 for frequency output, and likewise enter D1:D1001, E1:E1001, and F1:F1001 for the FFT real and imaginary parts, and spectral density.
  7. Click OK to run the analysis.

The next figure shows the output.

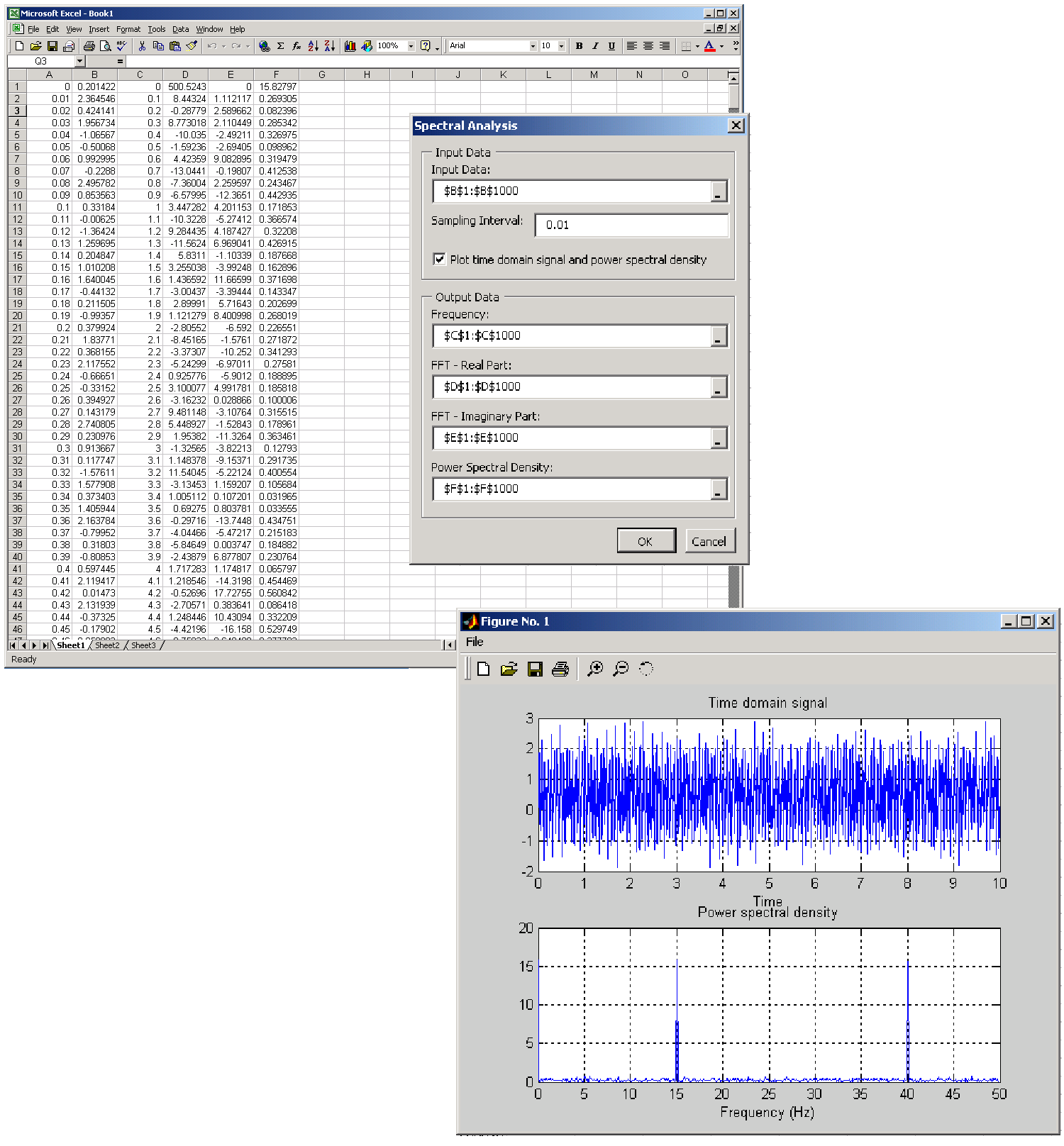

Figure 4-21: Worksheet with Inputs and Outputs for Test Problem

The power spectral density reveals the two signals at 15 and 40 Hz.
