| Fixed-Point Blockset | |
Increase the stored integer value of a signal by one
Library
Description
The Increment Stored Integer block is a masked block that increases the stored integer value of a signal by one.
Floating-point signals are also increased by one, and overflows always wrap.

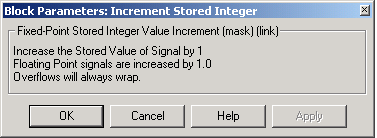

Parameters and Dialog Box
Characteristics
| Input Port |
Any data type supported by the blockset |
| Output Port |
Same as the input |
| Direct Feedthrough |
Yes |
| Scalar Expansion |
No |
See Also
| | Increment Real World | Index Vector | |
