Fixed-Point Blockset

Detect Change

Detect a change in a signal's value

Library

Edge Detect

Description

The Detect Change block is a masked block that determines if an input does not equal its previous value where

• The output is true (not 0), when the input signal does not equal its previous value.
• The output is false (equal to 0), when the input signal equals its previous value.

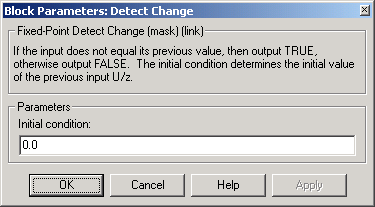

Parameters and Dialog Box

Initial condition

Set the initial condition for the previous input U/z.

Characteristics

Input Port	Any data type supported by the blockset
Output Port	An 8-bit unsigned integer
Direct Feedthrough	Yes
Scalar Expansion	Yes
Vectorized	Yes

See Also

Detect Decrease, Detect Fall Negative, Detect Fall Nonpositive, Detect Increase, Detect Rise Nonnegative, Detect Rise Positive
