Accumulator

Compute a cumulative sum

Library

Calculus

Description

At time step n, the Accumulator block computes a cumulative sum of all input values u up to time n and outputs the sum.

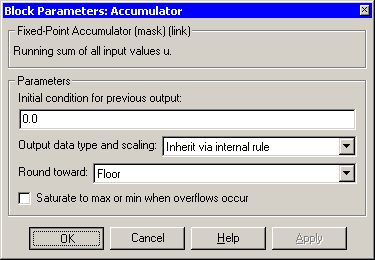

Parameters and Dialog Box

Initial condition for previous output: Set the initial condition for the previous output.
Output data type and scaling: Specify the output data type and scaling via the dialog box, or inherit the data type and scaling from the driving block or by backpropagation.
Round toward: Rounding mode for the fixed-point output.
Saturate to max or min when overflows occur: If selected, fixed-point overflows saturate.

Characteristics

Input Port
Any data type supported by the blockset

Output Port
Same data type as the input

Direct Feedthrough
Yes

Scalar Expansion
Of inputs and gain

Input Port	Any data type supported by the blockset
Output Port	Same data type as the input
Direct Feedthrough	Yes
Scalar Expansion	Of inputs and gain
