Miscellaneous Settings
The dspstartup M-file adjusts several other parameters to make it easier to run DSP simulations. Two of the important settings are
'Stop time' 'Inf', which allows the simulation to run until you manually stop it by selecting Stop from the Simulation menu, or by clicking the Stop Simulation button on the toolbar. To set a finite stop time, enter a value for the Stop time parameter in the Simulation Parameters dialog box.

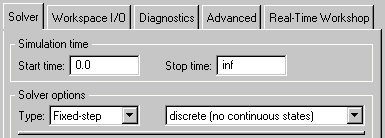

'Solver' is set to 'fixedstepdiscrete', which selects the fixed-step solver option instead of the Simulink default variable-step solver. (This mode enables code generation from the model using Real-Time Workshop.) See Discrete-Time Signals for more information about the various solver settings.
| Performance-Related Settings in dspstartup.m |
