Dials & Gauges Blockset

Using the dnglib Command in MATLAB

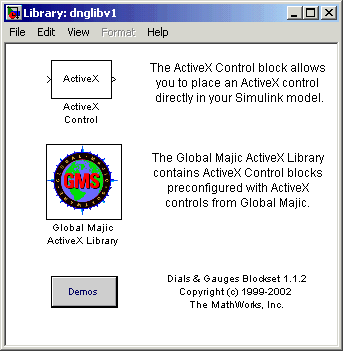

1. Enter the dnglib command in the MATLAB Command Window, which causes the following window to appear.



2. Double-click on the Global Majic ActiveX Library icon to access the libraries it contains.

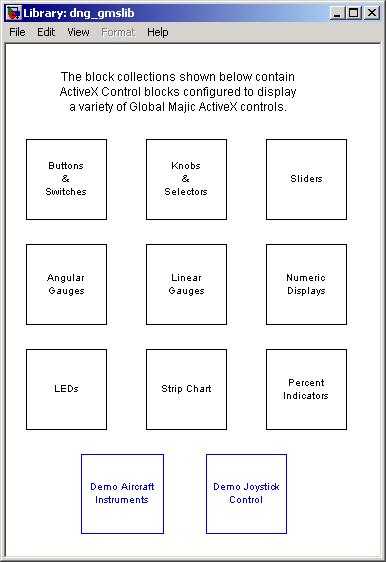

Each icon represents a different library of blocks. Double-click on an icon to access the blocks in the library. If they all say "ActiveX" and do not look like graphical instruments, then follow the instructions in Configuring the Dials & Gauges Blockset. Each library also includes a question-mark block that provides access to online help for the ActiveX controls in that library.

Accessing the Preconfigured Blocks

Using the Simulink Library Browser
