Configuring Trigger Properties

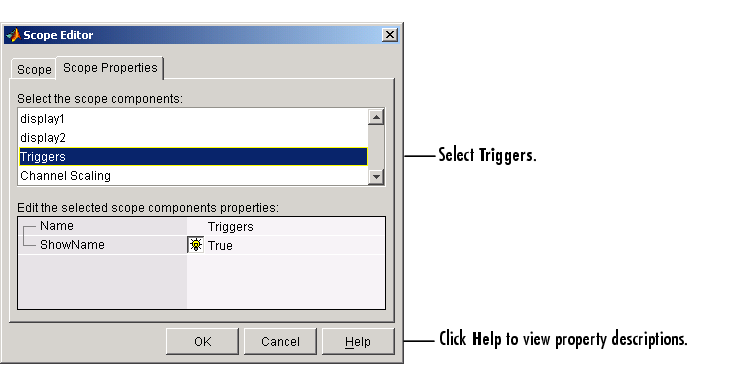

You can change the characteristics of the labels associated with the Triggers panel with the Scope Editor GUI. To open this GUI, select Scope from the Edit menu, choose the Scope Properties pane, and select Triggers from the Select the scope components list box. The Scope Properties pane is shown below.
