Communications Blockset

Modulo Integrator

Integrate in continuous time and reduce by a modulus

Library

Integrators, in Basic Comm Functions

Description

The Modulo Integrator block integrates its input signal in continuous time and then reduces modulo the Absolute value bound parameter. If the Absolute value bound parameter is K, then the block output is strictly between -K and K.

The input must be sample-based. The block processes each vector element independently.

This block's functionality is useful for monotonically increasing or decreasing functions, but works with any integrable function. This block uses the Forward Euler integration method.

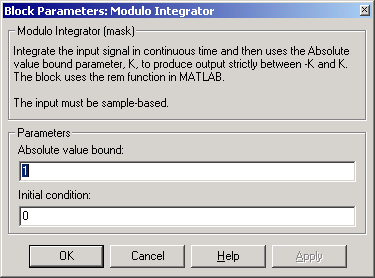

Dialog Box

Absolute value bound

The modulus by which the integration result is reduced. This parameter must be nonzero.

Initial condition

The initial condition for integration.

See Also

Discrete Modulo Integrator, Integrator (Simulink)
