Permute input symbols by filling a matrix by rows and emptying it by columns
Library
Block sublibrary of Interleaving
Description
The Matrix Interleaver block performs block interleaving by filling a matrix with the input symbols row by row and then sending the matrix contents to the output port column by column.
The Number of rows and Number of columns parameters are the dimensions of the matrix that the block uses internally for its computations.
The number of elements of the input vector must be the product of Number of rows and Number of columns. If the input is frame-based, then it must be a column vector.

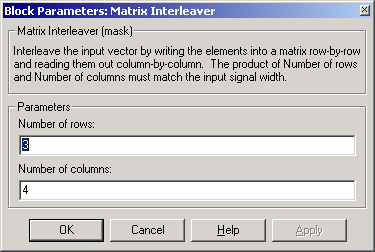

Dialog Box
Examples
If the Number of rows and Number of columns parameters are 2 and 3, respectively, then the interleaver uses a 2-by-3 matrix for its internal computations. Given an input signal of [1; 2; 3; 4; 5; 6], the block produces an output of [1; 4; 2; 5; 3; 6].
