Differential Encoder

Encode a binary signal using differential coding technique.

Library

Source Coding

Description

The Differential Encoder block encodes and outputs the binary input signal.

The input m and output d are related by

d(t₀) = m(t₀) +1 mod 2

d(t_k) = d(t_k-1) + m(t_k) +1 mod 2

where t_k is the kth time step.

The input can be either a scalar, a sample-based vector, or a frame-based row vector. This block processes each vector element independently.

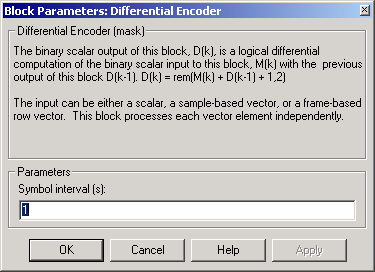

Dialog Box

Symbol interval (s)

The sample time of the input symbol.

Pair Block

Differential Decoder

Differential Decoder

Discrete Modulo Integrator
