CPFSK Demodulator Baseband (Communications Blockset)

Demodulate CPFSK-modulated data

Library

CPM, in Digital Baseband sublibrary of Modulation

Description

The CPFSK Demodulator Baseband block demodulates a signal that was modulated using the continuous phase frequency shift keying method. The input is a baseband representation of the modulated signal. The M-ary number parameter, M, is the size of the input alphabet. M must have the form 2^K for some positive integer K.

The Modulation index parameter times radians is the phase shift in the modulated signal due to the latest symbol, when that symbol is the integer 1. The Phase offset parameter is the initial phase of the modulated waveform.

Traceback Length and Output Delays

Internally, this block creates a trellis description of the modulation scheme and uses the Viterbi algorithm. The Traceback length parameter, D, in this block is the number of trellis branches used to construct each traceback path. D influences the output delay, which is the number of zero symbols that precede the first meaningful demodulated value in the output.

If the input signal is sample-based, then the delay consists of D+1 zero symbols.
If the input signal is frame-based, then the delay consists of D zero symbols.

Outputs and Symbol Sets

If the Output type parameter is set to Integer, then the block produces odd integers between -(M-1) and M-1.

If the Output type parameter is set to Bit, then the block produces groupings of K bits. Each grouping is called a binary word.

In binary output mode, the block first maps each input symbol to an intermediate value as in the integer output mode. The block then maps the odd integer k to the nonnegative integer (k+M-1)/2. Finally, the block maps each nonnegative integer to a binary word, using a mapping that depends on whether the Symbol set ordering parameter is set to Binary or Gray. For more information about Gray and binary coding, see Binary-Valued and Integer-Valued Signals in Using the Communications Blockset.

The input can be either a scalar or a frame-based column vector.

Processing an Upsampled Modulated Signal

The input signal can be an upsampled version of the modulated signal. The Samples per symbol parameter is the upsampling factor. It must be a positive integer. For more information, see Upsampled Signals and Rate Changes in Using the Communications Blockset.

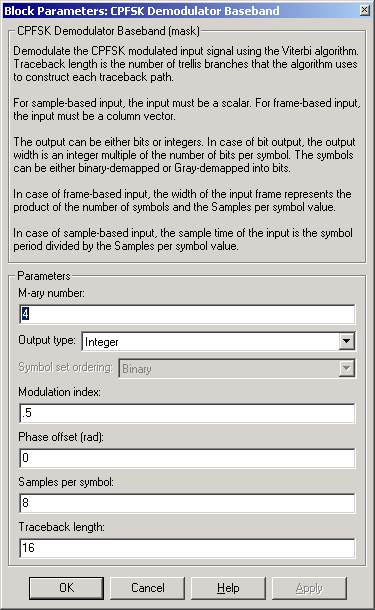

Dialog Box

M-ary number: The size of the alphabet.
Output type: Determines whether the output consists of integers or groups of bits.
Symbol set ordering: Determines how the block maps each integer to a group of output bits. This field is active only when Output type is set to Bit.
Modulation index: The number of half-revolutions of phase shift in the modulated signal after modulating the latest symbol of 1.
Phase offset (rad): The initial phase of the modulated waveform.
Samples per symbol: The number of input samples that represent each modulated symbol.
Traceback length: The number of trellis branches that the Viterbi Decoder block uses to construct each traceback path.

Pair Block

CPFSK Modulator Baseband

References

[1] Anderson, John B., Tor Aulin, and Carl-Erik Sundberg. Digital Phase Modulation. New York: Plenum Press, 1986.
