Algebraic Deinterleaver

Restore ordering of the input symbols using algebraically derived permutation

Library

Block sublibrary of Interleaving

Description

The Algebraic Deinterleaver block restores the original ordering of a sequence that was interleaved using the Algebraic Interleaver block. In typical usage, the parameters in the two blocks have the same values.

The Number of elements parameter, N, indicates how many numbers are in the input vector.If the input is frame-based, then it must be a column vector.

The Type parameter indicates the algebraic method that the block uses to generate the appropriate permutation table. Choices are Takeshita-Costello and Welch-Costas. Each of these methods has parameters and restrictions that are specific to it; these are described on the reference page for the Algebraic Interleaver block.

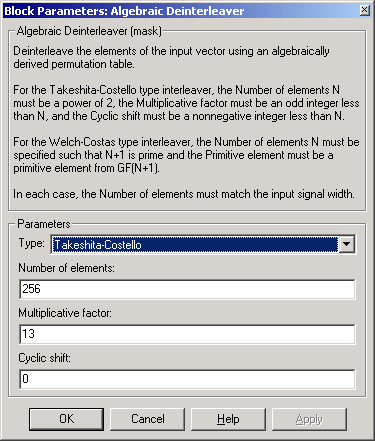

Dialog Box

Type

The type of permutation table that the block uses for deinterleaving. Choices are Takeshita-Costello and Welch-Costas.

Number of elements

The number of elements, N, in the input vector.

Multiplicative factor

The factor used to compute the corresponding interleaver's cycle vector. This field appears only if Type is set to Takeshita-Costello.

Cyclic shift

The amount by which the block shifts indices when creating the corresponding interleaver's permutation table. This field appears only if Type is set to Takeshita-Costello.

Primitive element

An element of order N in the finite field GF(N+1). This field appears only if Type is set to Welch-Costas.

Pair Block

Algebraic Interleaver

See Also

General Block Deinterleaver

References

[1]  Heegard, Chris and Stephen B. Wicker. Turbo Coding. Boston: Kluwer Academic Publishers, 1999.

[2]  Takeshita, O. Y. and D. J. Costello, Jr. "New Classes Of Algebraic Interleavers for Turbo-Codes." Proc. 1998 IEEE International Symposium on Information Theory, Boston, Aug. 16-21, 1998. 419.
