CDMA Reference Blockset

IS-95A Mobile Station Transmitter Library

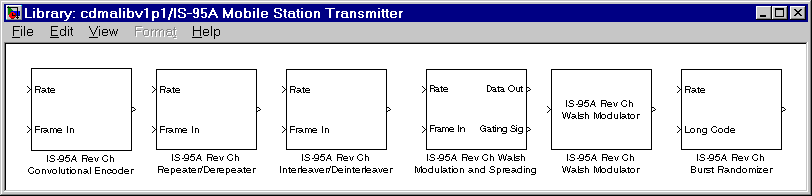

The Mobile Station Transmitter Library provides the blocks required to perform the CDMA system mobile station or reverse link transmitter functions. The functions and their corresponding blocks are shown below.

Function	Block(s)
Channel coding and interleaving of the information bits for error protection	IS-95A Rev Ch Convolutional Encoder IS-95A Rev Ch Repeater/Derepeater IS-95A Rev Ch Interleaver/Deinterleaver
Modulation of the signal to spread its spectrum	IS-95A Rev Ch Walsh Modulation and Spreading (includes IS-95A Rev Ch Walsh Modulator and IS-95A Rev Ch Burst Randomizer)
Walsh modulation, which involves the conversion of the channel symbol bits to one of several orthogonal Walsh codewords	IS-95A Rev Ch Walsh Modulator
Burst randomization, which consists of the gating of the transmitted signal using the long code	IS-95A Rev Ch Burst Randomizer

IS-95A Mobile Station Receiver Library

IS-95A Base Station Receiver Library
