MATLAB Link for Code Composer Studio Development Tools

Class Diagrams for the MATLAB Link for Code Composer Studio

One of the most important features of object-oriented programming is the relationship between the classes that compose the system. Class relationships lend themselves to graphical layout like a tree structure, where the structure of the tree shows clearly the super- and subclasses, the base classes, and the other classes. In addition, the diagrams can show the properties and methods for each class, and where a subclass adds properties and methods to those it inherits from its superclass.

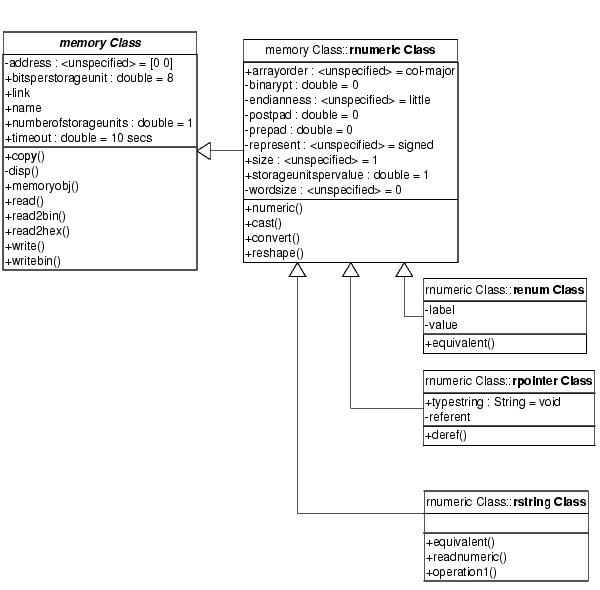

The following figures show the methods and properties of each class or object. For short descriptions about the properties for each class, refer to the tables in the following sections:

• Numeric Objects--Their Methods and Properties
• Bitfield Objects--Their Methods and Properties
• Enum Objects--Their Methods and Properties
• Pointer Objects--Their Methods and Properties
• String Objects--Their Methods and Properties
• Rnumeric Objects--Their Methods and Properties
• Renum Objects--Their Methods and Properties
• Rpointer Objects--Their Methods and Properties
• Rstring Objects--Their Methods and Properties
• Structure Objects--Their Methods and Properties

Detailed descriptions of the properties appear in the reference pages in section Reference for the Properties of the Objects.

Class Diagram of the Memory Class

Class Diagram of the Register Class

Class Diagram of the Structure Class

About the Relationships Between Objects

Numeric Objects--Their Methods and Properties
