MATLAB Function Reference

tril

Lower triangular part of a matrix

Syntax

• L = tril(X)
  L = tril(X,k)


Description

L = tril(X) returns the lower triangular part of X.

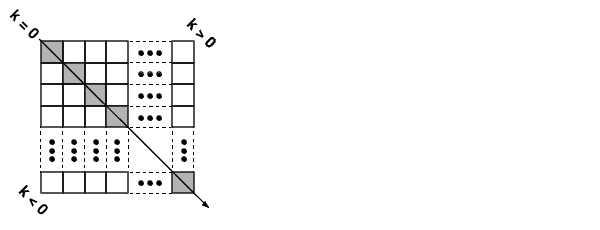

L = tril(X,k) returns the elements on and below the kth diagonal of X. k = 0 is the main diagonal, k > 0 is above the main diagonal, and k < 0 is below the main diagonal.

Examples

• tril(ones(4,4),-1)

  ans =

      0    0    0    0
      1    0    0    0
      1    1    0    0
      1    1    1    0


See Also

diag, triu
