ndgrid (MATLAB Functions)

Generate arrays for multidimensional functions and interpolation

Syntax

[X1,X2,X3,...] = ndgrid(x1,x2,x3,...)
[X1,X2,...] = ndgrid(x)

Description

[X1,X2,X3,...] = ndgrid(x1,x2,x3,...) transforms the domain specified by vectors x1,x2,x3... into arrays X1,X2,X3... that can be used for the evaluation of functions of multiple variables and multidimensional interpolation. The ith dimension of the output array Xi are copies of elements of the vector xi.

[X1,X2,...] = ndgrid(x) is the same as [X1,X2,...] = ndgrid(x,x,...).

Examples

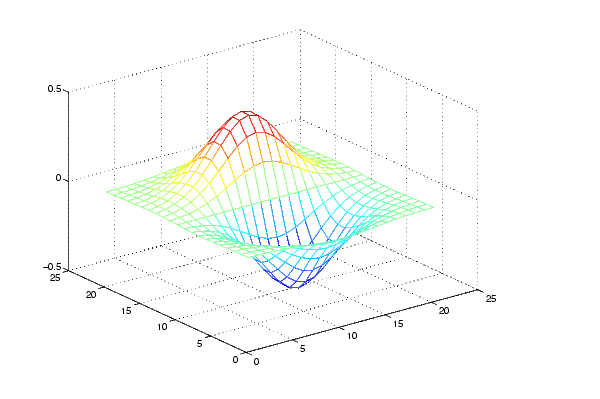

Evaluate the function

over the range .

[X1,X2] = ndgrid(-2:.2:2, -2:.2:2);
Z = X1 .* exp(-X1.^2 - X2.^2);
mesh(Z)

Remarks

The ndgrid function is like meshgrid except that the order of the first two input arguments are switched. That is, the statement

```
[X1,X2,X3] = ndgrid(x1,x2,x3)
```

produces the same result as

```
[X2,X1,X3] = meshgrid(x2,x1,x3)
```

Because of this, ndgrid is better suited to multidimensional problems that aren't spatially based, while meshgrid is better suited to problems in two- or three-dimensional Cartesian space.

See Also

meshgrid, interpn
