ezplot3 (MATLAB Functions)

Easy to use 3-D parametric curve plotter

Syntax

ezplot3(x,y,z)
ezplot3(x,y,z,[tmin,tmax])
ezplot3(...,'animate')

Description

ezplot3(x,y,z) plots the spatial curve x = x(t), y = y(t), and z = z(t) over the default domain 0 < t < 2.

ezplot3(x,y,z,[tmin,tmax]) plots the curve x = x(t), y = y(t), and z = z(t) over the domain tmin < t < tmax.

ezplot3(...,'animate') produces an animated trace of the spatial curve.

Remarks

Array multiplication, division, and exponentiation are always implied in the expression you pass to ezplot3. For example, the MATLAB syntax for a plot of the expression,

```
x = s./2, y = 2.*s, z = s.^2;
```

which represents a parametric function, is written as:

```
ezplot3('s/2','2*s','s^2')
```

That is, s/2 is interpreted as s./2 in the string you pass to ezplot3.

Examples

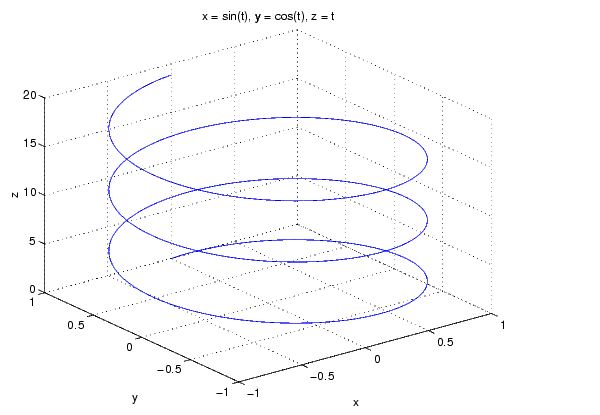

This example plots the parametric curve,

over the domain [0,6]:

ezplot3('sin(t)','cos(t)','t',[0,6*pi])

See Also

ezplot, ezpolar, plot3

Function Plots for related functions

ezplot ezpolar
