Disassembly of a Wommelsdorf machine

   By November 2013 I received these photos from Frank Jones, showing the disassembly for restoration of a classical Wommelsdorf condenser machine, of which I had already made  a version. The photos show all the details of the construction and even allow an exact reproduction of the machine. This particular machine was originally poorly assembled, with base holes incorrectly aligned, and so probably never worked properly, a possible reason for its survival in so good conditions.

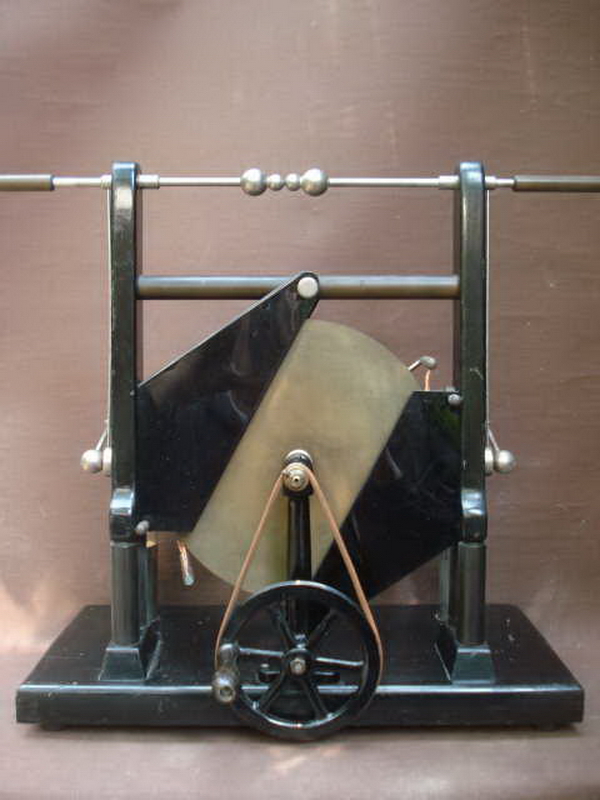

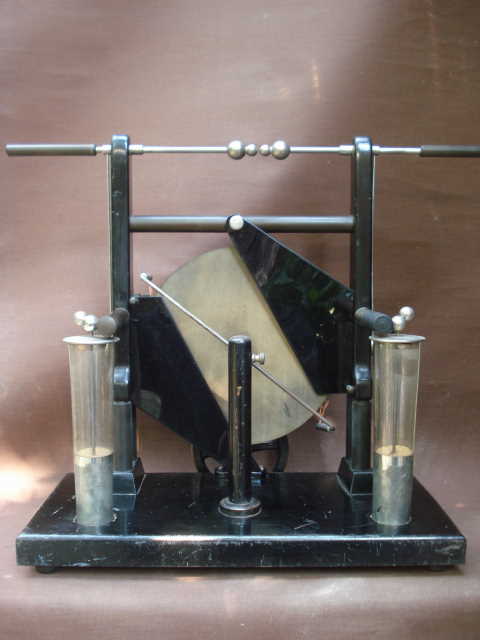

Front view
Back view

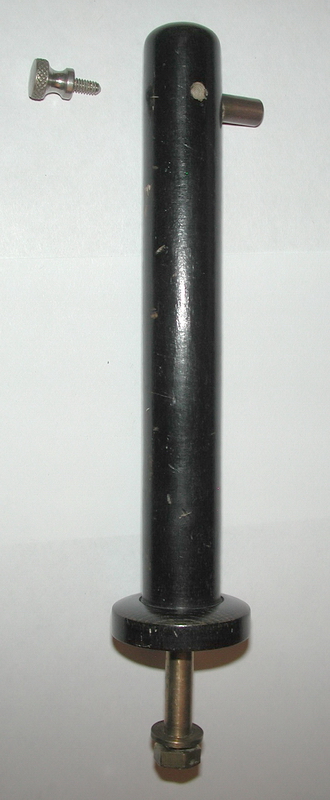

Neutralizer support

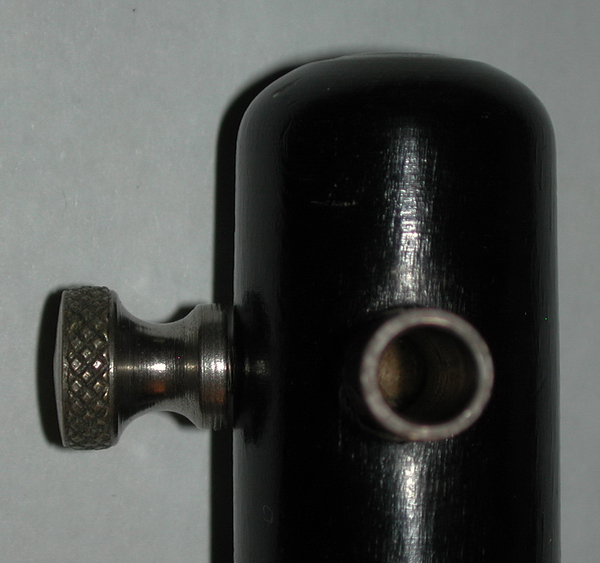

Top of neutralizer support

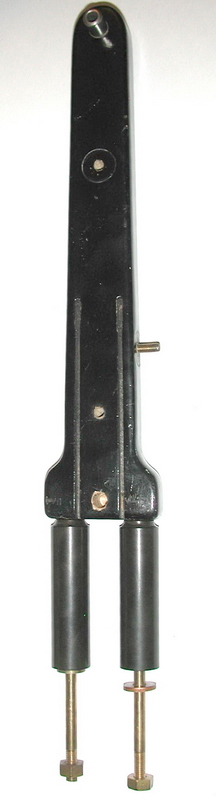

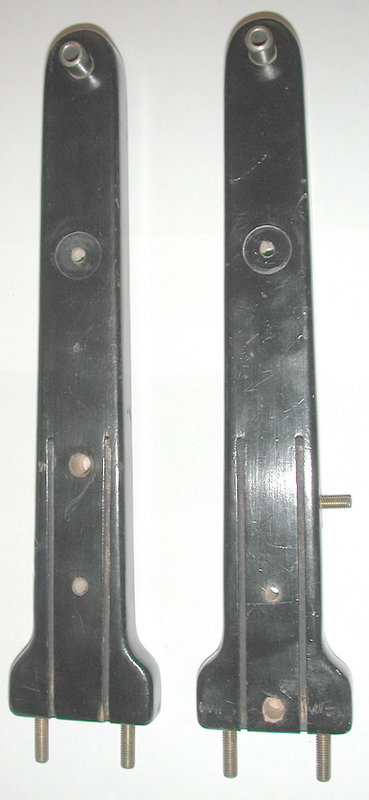

Lateral supports

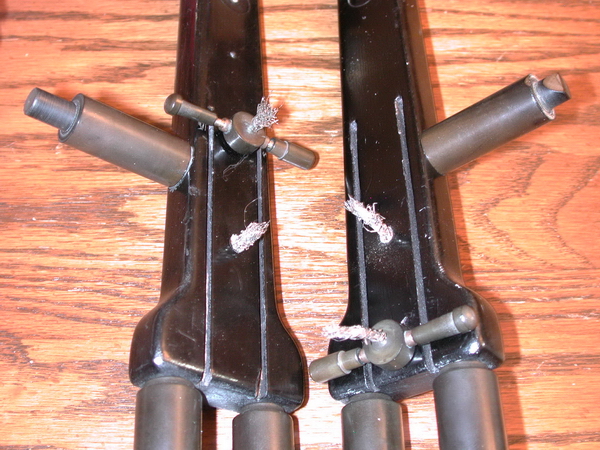

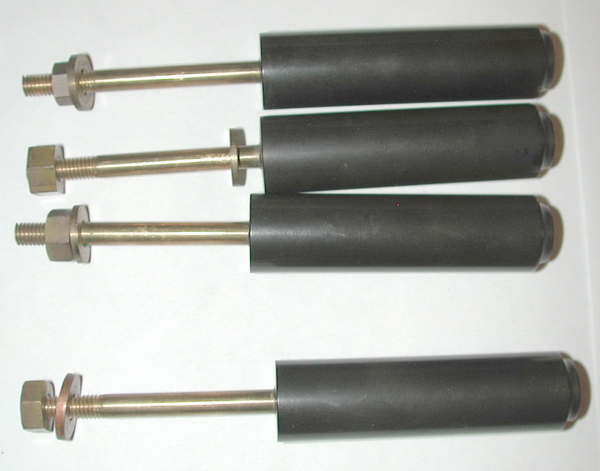

Lateral supports with brushes and insulators

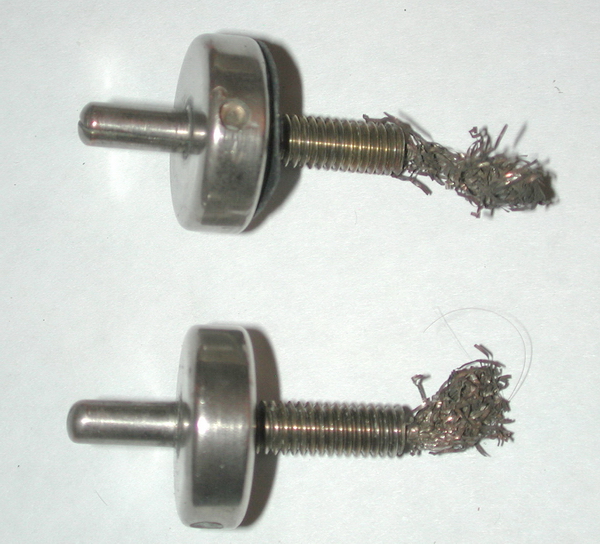

  Charge collector brushes and plugs for the Leyden jar switches.
Vertical support with insulators

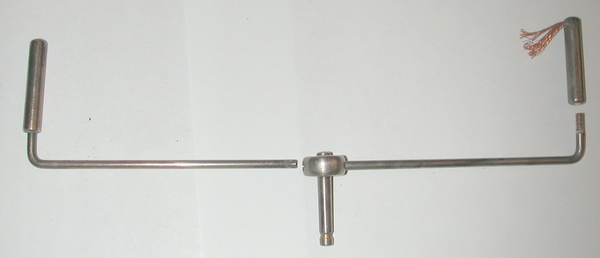

Neutralizer bar

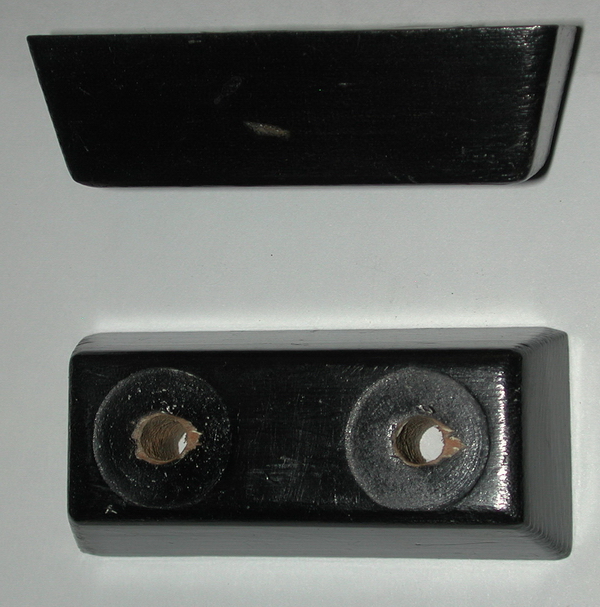

Blocks under the lateral supports
Top horizontal insulator

Upper pulley

Insulators

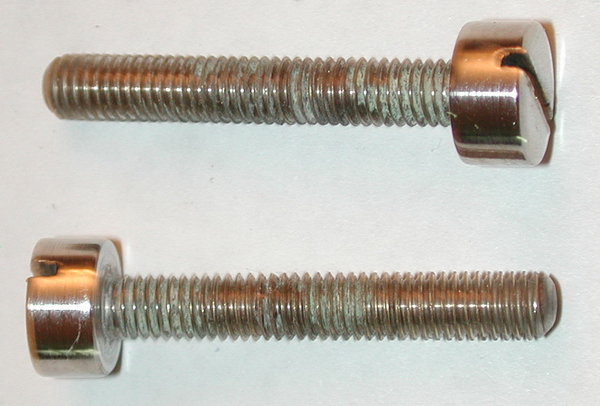

Screws that fix the top horizontal insulator

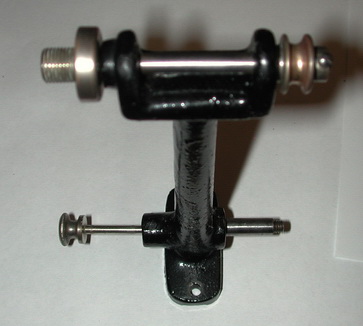

Main support and axles

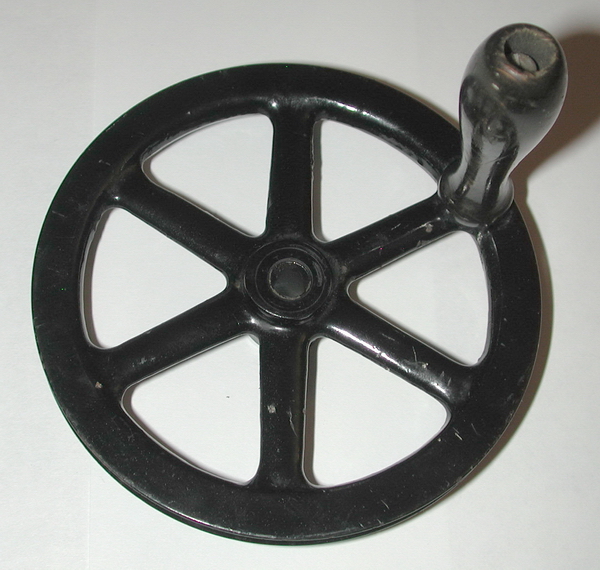

Crank

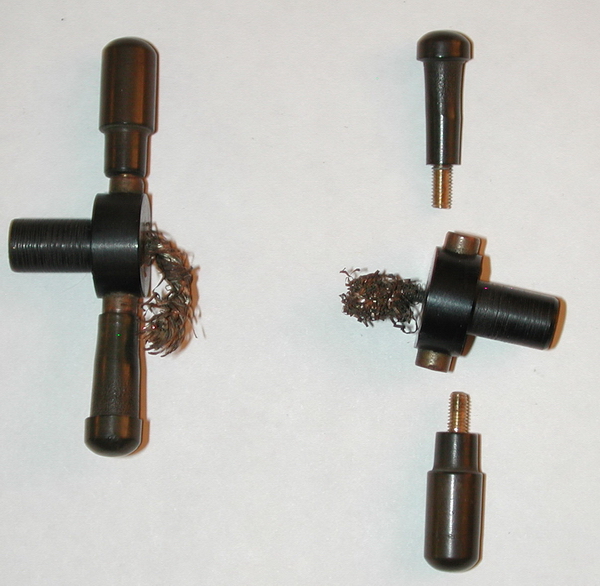

Inductor brush assembly

Discharger

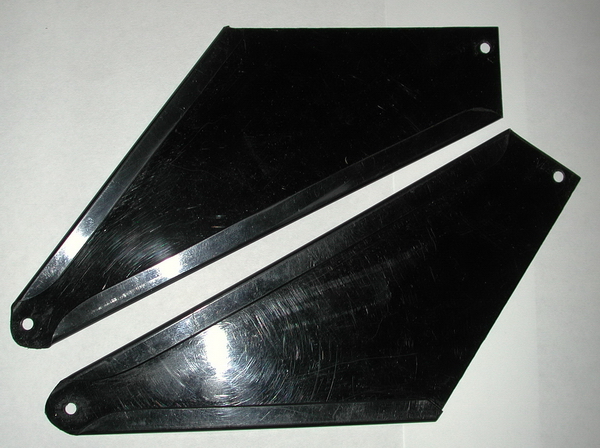

Inductor plates. Paper over metal strips
Inductor covers

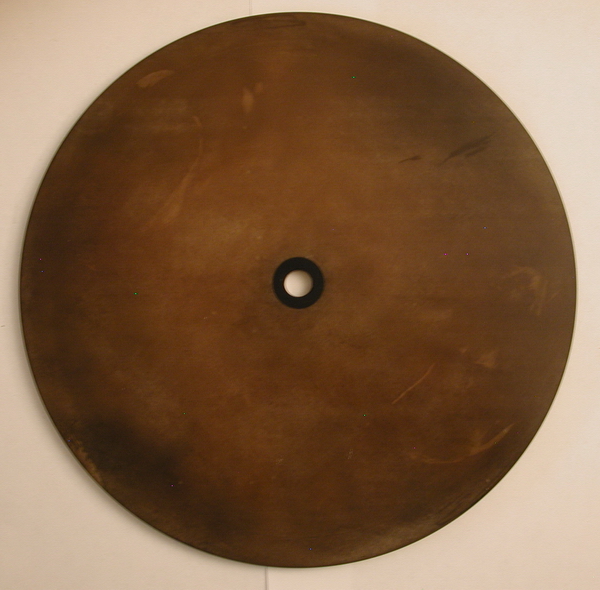

Disk, with internal metal sectors accessed through the edge

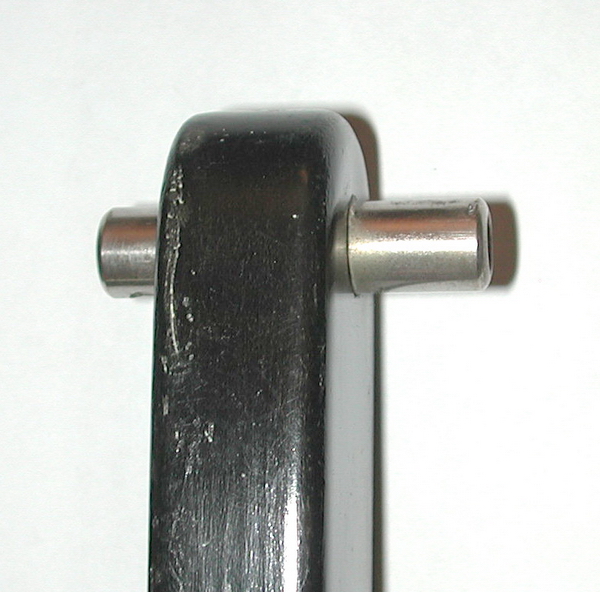

Tubes where the dischargers slide


Base

Leyden jar switch

Leyden jar mount rotated

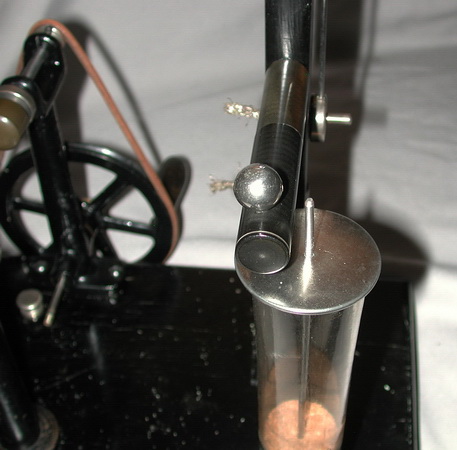

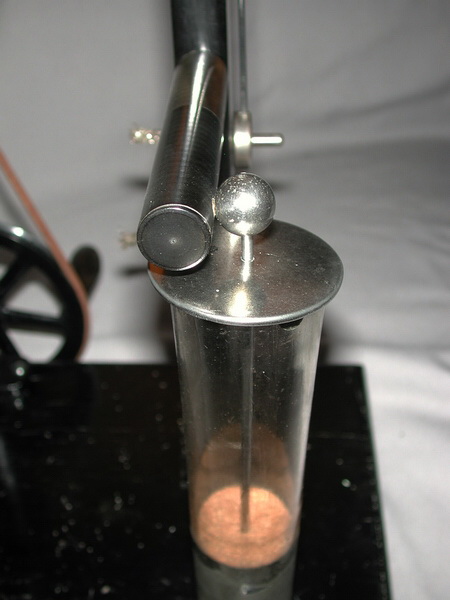

Leyden jar mount in place

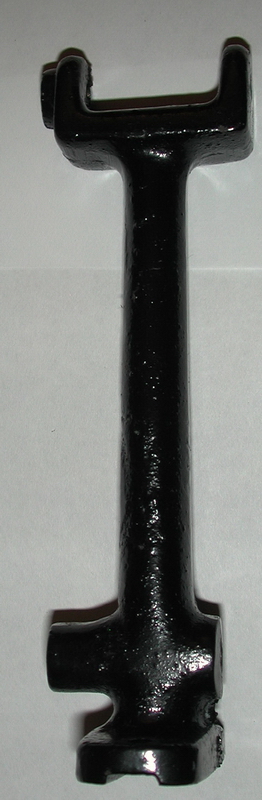

Main support

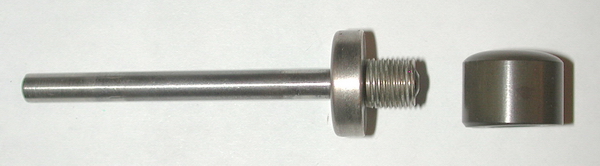

Disk axle and nut

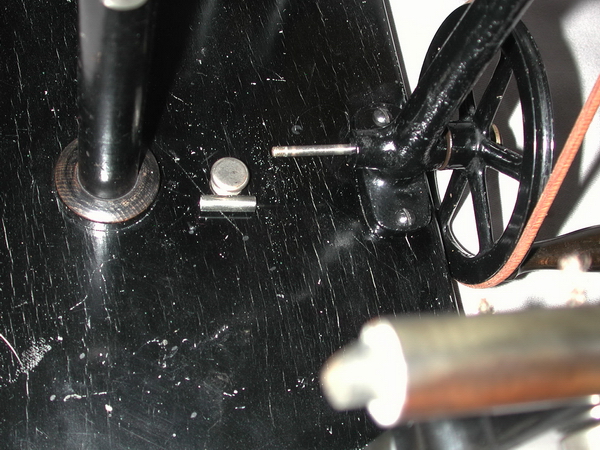

Lower inductor support

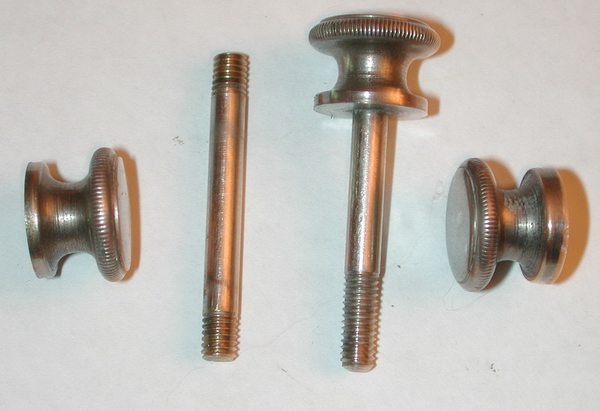

Screws that fix the inductors to the top horizontal insulator
Switches that go to the Leyden jars

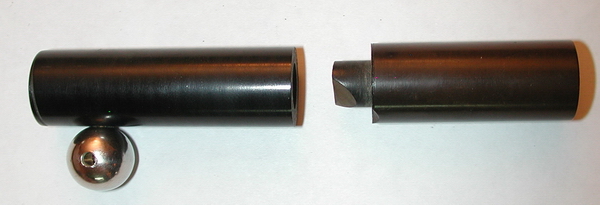

Leyden jar support

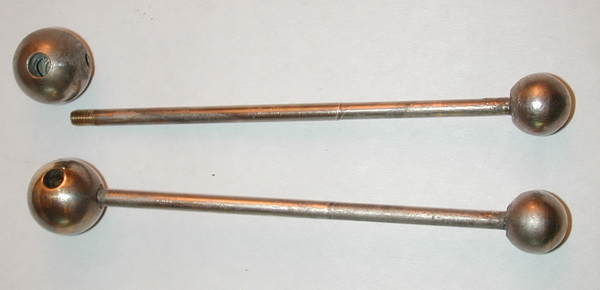

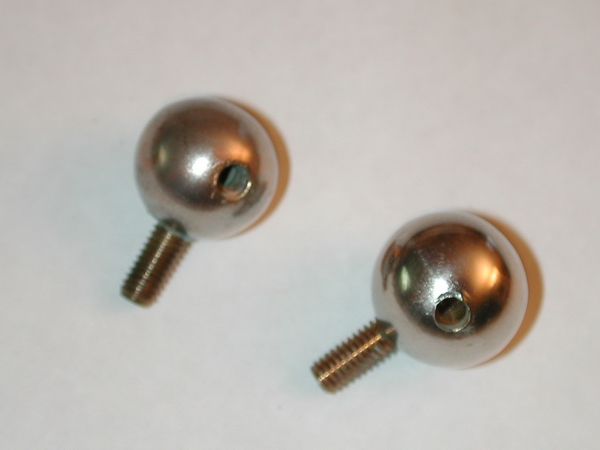

Leyden jar support balls

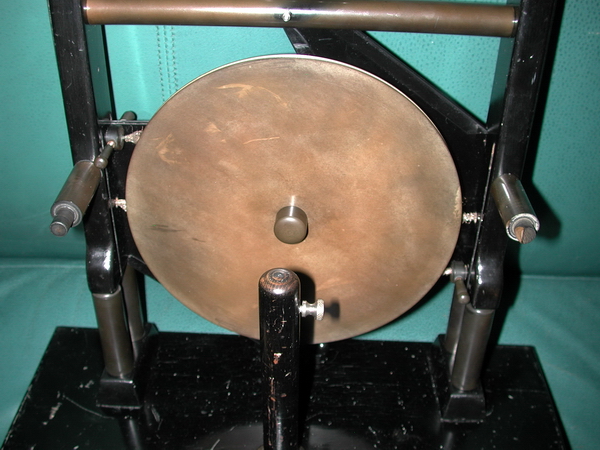

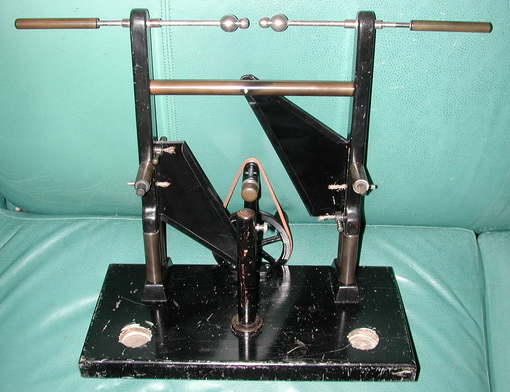

Partial disassembly

Partial disassembly

Details about the parts and their dimensions can be found on these notes, by Mr. Jones.

Below are pictures of another Wommelsdorf machine belonging to Mr. Jones' collection. It has a box for transport and a different structure.

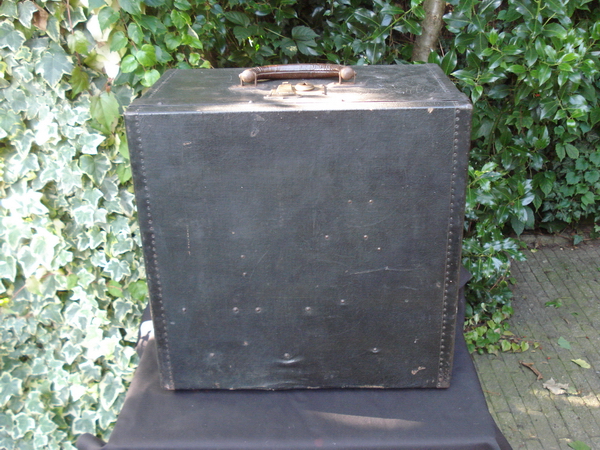

Box closed

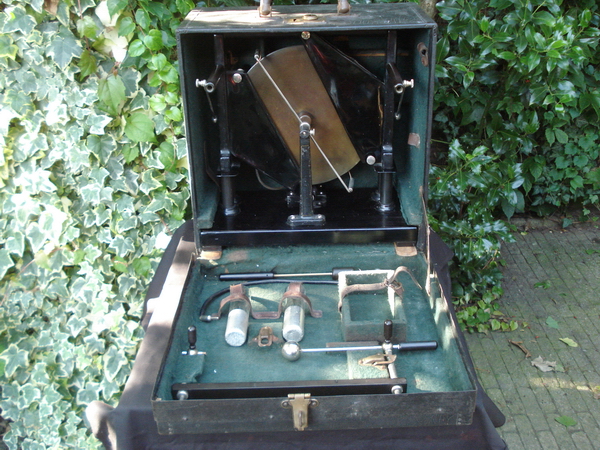

Machine in the box

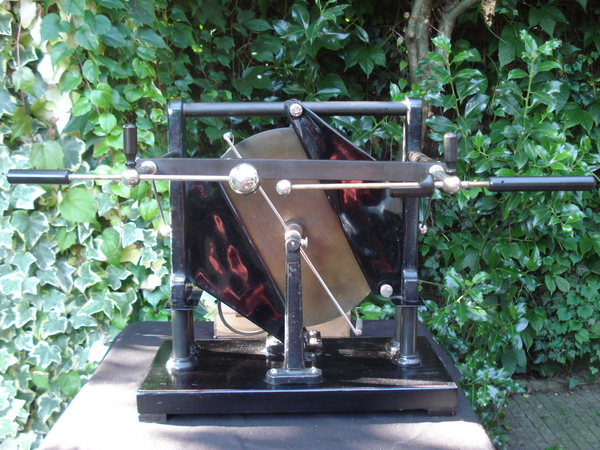

Front view

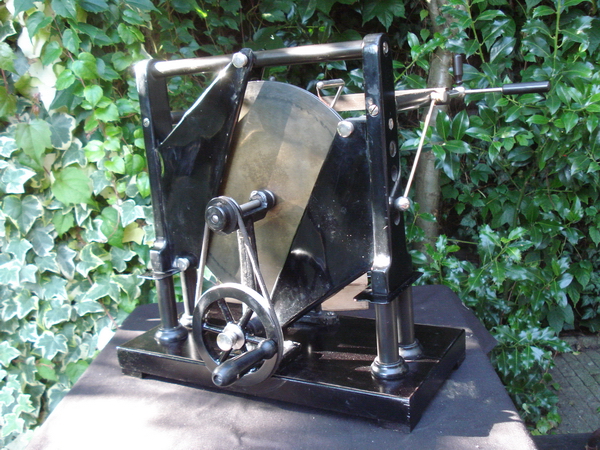

Back view


Created: 5/7/2014
